Single coil 4V210-06 4V210-08 Pilot Operated Solenoid Valve

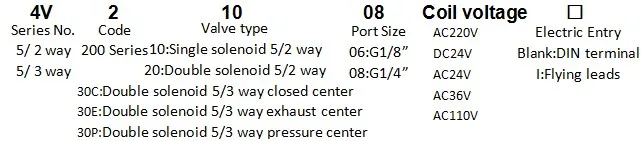

Order code
Symbol
Techanical Parameter
|
Model |
4V210-M5 |
4V220-M5 |
4V230C-M5 |
4V230E-M5 |
4V230P-M5 |
4V210-06 |
4V220-06 |
4V230C-06 |
4V230E-06 |
4V230P-06 |
|
|
Fluid |
Air |
||||||||||
|
Acting |
Internal pilot |
||||||||||
|
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
|||||||
|
Orifice size |
5.5mm2 |
5mm2 |
12mm2 |
9mm2 |
|||||||
|
Lubrication |
No required |
||||||||||
|
Port size |
In=out=M5 |
In=out=G1/8 |
|||||||||
|
Protective class |
IP65 |
||||||||||
|
Pressure range |
0.15-0.8MPa(21~1145Psi) |
||||||||||
|
Proof pressure |
1.2MPa(170psi) |
||||||||||
|
Material of body |
Aluminum Alloy |
||||||||||
|
Temperature |
-5℃~60℃ |
||||||||||
|
Response speed |
<0.05s |
||||||||||

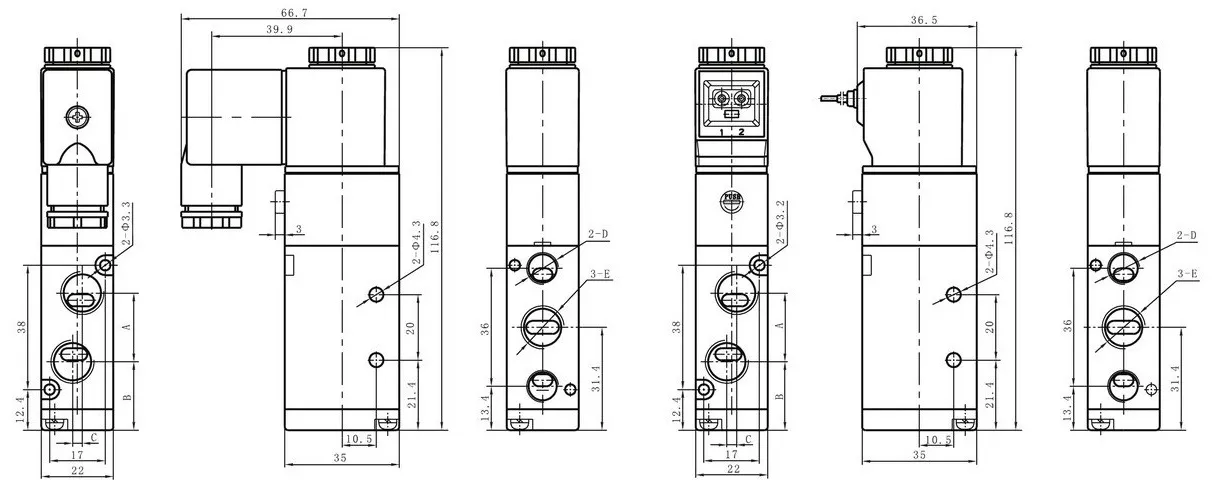

4V210 Dimension
Terminal Grommet
|
Item No |
A |
B |
C |
D |
E |
|
4V210-06 |
18 |
22.4 |
0 |
G1/8” |
G1/8” |
|
4V210-08 |
21 |
20.9 |
3 |
G1/8” |
G1/4” |
4V220 Dimension
Terminal Grommet
|
Item No |
A |
B |
C |
D |
E |
|
4V220-06 |
18 |
76.4 |
0 |
G1/8” |
G1/8” |
|
4V220-08 |
21 |
74.9 |
3 |
G1/8” |
G1/4” |
4V230 Dimension
Terminal Grommet
|
Item No |
A |
B |
C |
D |
E |
|
4V230-06 |
18 |
76.4 |
0 |
G1/8” |
G1/8” |
|
4V230-08 |
21 |
74.9 |
3 |
G1/8” |
G1/4” |
Feature
* Airtac Type Solenoid valve 4V Series
* Aluminum material Body width 18mm,22mm,27mm,34mm
* Pilot Operated,Inner Pilot type
* Life cycle 10000000 times
* Pipe joint and Namur joint type for option
* Din connector and outlead wire electricity connecting for selectable
* Metal Manual Override ensure stability when power failure or necessary functional motion
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
* Mature products,cost effectively
