MRHQ10D-90S

Rotary Gripper MRHQ Series

Compact and integrated design. The gripper structure and swing function are integrated. It makes the operation more convenient. With just one gripper, the workpiece can be clamped and reversed on the assembly line.

Made of aluminum alloy, it has strong corrosion resistance and high hardness, and is not prone to oxidation.

The gripper is equipped with imported guide rail steel balls, which are wear-resistant and durable.

Using imported lubricating oil can reduce resistance and enhance work efficiency.

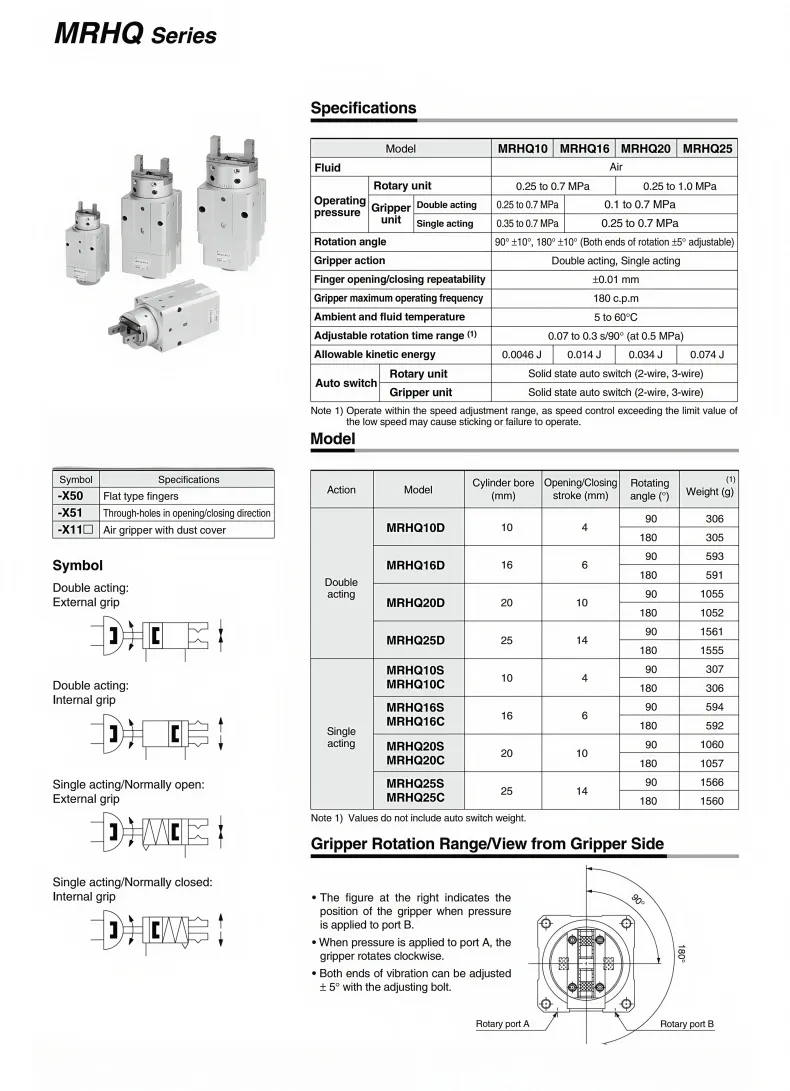

The swing range and angle can be selected as 90° or 180° (allowing for slight up-and-down adjustment)
