PY-6 PY-12
PY series three-way quick connect pipe pneumatic fitting360°rotation strong sealing performanceEasy to adjust with tight connectionStrict selection of materials precision machiningThe main body is made of high-strength plastic, with a smooth surface and wear resistance, long lifeHigh quality sealing ring high pressure resistance non-leakage and non-tripBuilt-in stainless steel circlip locking pipe quick plug and installation easy disassemble and easy to pull out
Product Detail
PRODUCT PARAMETER
PY Tee Connector Pneumatic Quick Connect Pipe Tube Fitting
Order code
Technical parameter
|
Model |
PY-4 |
PY-6 |
PY-8 |
PY-10 |
PY-12 |
PY-14 |
PY-16 |
|
|
Fluid |
Air |
|||||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
|
Temperature |
0℃~60℃ |
|||||||
|
Applicable tube |
PU/Nylon tube |
|||||||
|
Tube outer size |
4mm,6mm ,8mm,10mm,12mm,14mm,16mm |
|||||||

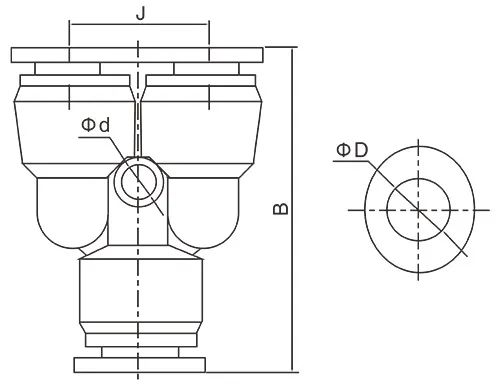

Dimension
|
Metric Type |
φD |
B |
J |
φd |
|
PY-4 |
4 |
36 |
11 |
2.5 |
|
PY-6 |
6 |
39 |
13 |
3.5 |
|
PY-8 |
8 |
43 |
15 |
4 |
|
PY-10 |
10 |
49 |
19 |
4 |
|
PY-12 |
12 |
54 |
21 |
4 |
|
PY-14 |
14 |
53 |
23.5 |
4 |
|
PY-16 |
16 |
63 |
27 |
4 |
Feature
- Union PY Tee Connector Pneumatic Quick Connect Pipe Tube Fitting is high Strength, Wear Resistance, Corrosion Resistance, High Density, Not Easy to Burst.
- white plastic pneumatic fittings is Sturdy and Durable and Has a Long Service Life.
- Easy Installation and Disassembly, Good Sealing Performance.
- Y tee union tube fittings Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.
- You Can Easily Insert or Pull out the Trachea Without Any Tools.
