4H210 4H230 series 1/4" 5 port Pneumatic switch hand return directional control valve
Order code

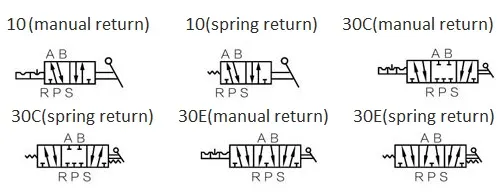

Symbol
Technical parameter
|
Model |
4H210-06 4HA210-06 |
4H230-06 4HA230-06 |
4H210-08 4HA210-08 |
4H230-08 4HA230-08 |
4H310-08 4HA310-08 |
4H330-08 4HA330-08 |
4H310-10 4HA310-10 |
4H330-10 4HA330-10 |
|||
|
Fluid |
Air |
||||||||||
|
Acting |
Manual control direct acting type |
||||||||||
|
Valve type |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
5/2 way |
5/3 way |
|
||
|
Orifice size |
14.0mm2 |
12.0mm2 |
16.0mm2 |
12.0mm2 |
25.0mm2 |
18.0mm2 |
30.0mm2 |
18.0mm2 |
|
||
|
Lubrication |
No required |
||||||||||
|
Port size |
In=out=Exhaust=G1/8” |
In=out=G1/4” Exhaust=G1/8” |
In=out=Exhaust=G1/4” |
In=out=G3/8” Exhaust=G1/4” |
|
||||||
|
Protective class |
IP65 |
||||||||||
|
Pressure range |
0-0.8MPa |
||||||||||
|
Proof pressure |
1.2MPa |
||||||||||
|
Material of body |
Aluminum Alloy |
||||||||||
|
Temperature |
-20℃~60℃ |
||||||||||
|
Operating angle |
±15° |
±8.5° |
±15° |
±8.5° |
±18° |
±10° |
±18° |
±10° |
|
||

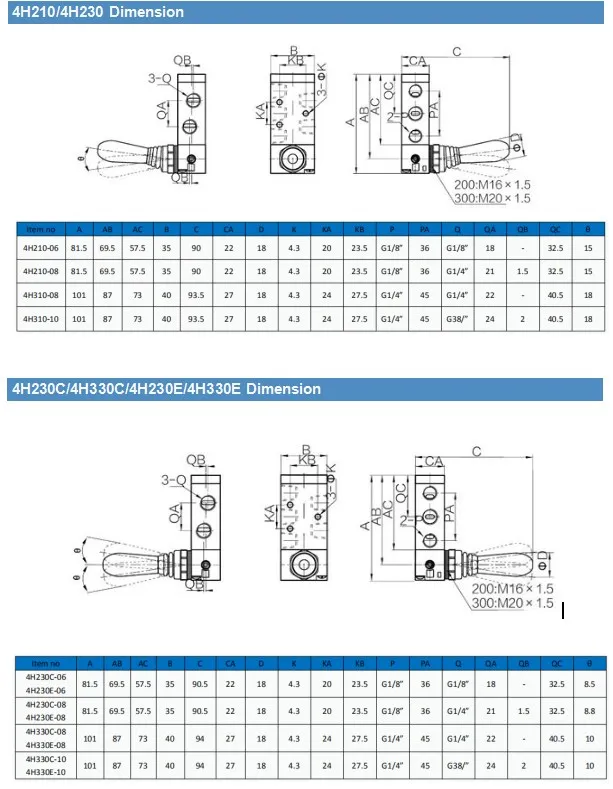

Dimension
Feature
.4H210 4H230 hand return directional control valve is 5 port hand valve
.with high response and stability nature.
.There are two motion pattern, single-head double-position and single-head three position.
.5/2way hand valve and 5/3 way manual valve are available.
.4H210 hand lever valve is Manual return operated valve and 4HA210 pneumatic solenoid valve is spring return hand control valve
4H230C:5/3 way closed center hand pull valve
4H230E: 5/3 way exhaust center hand operated valve
4H230P:5/3 way pressure center pneumatic hand control valve
.Pneumatic control valve is the pneumatic system to control the flow of air pressure, flow and flow direction, and ensures the normal work of pneumatic actuator components or institutions of all kinds of pneumatic components.
