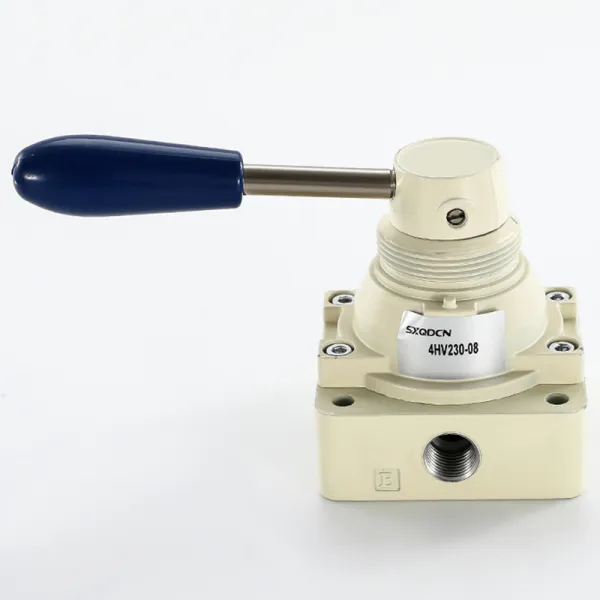

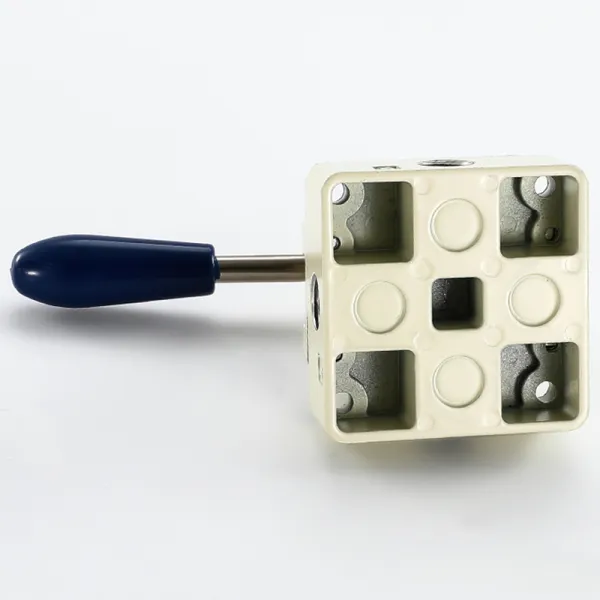

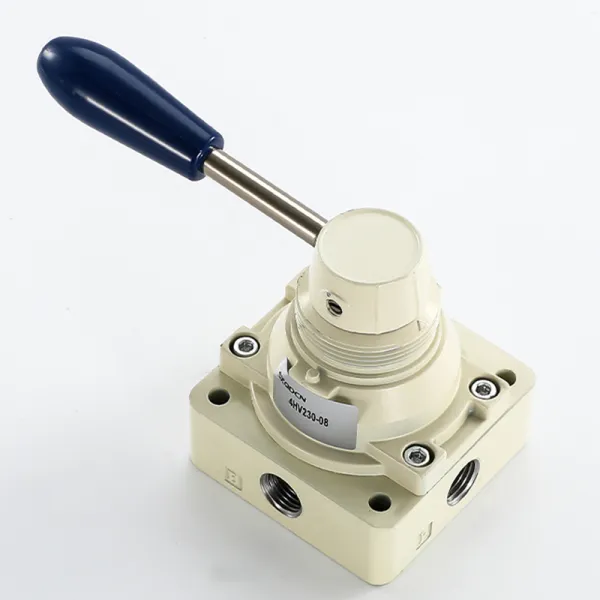

1/2 inch 4HV Series 4 port 3 way Pneumatic Hand Rotary Lever Control Valve 4HV410-15/4HV430-15
Order code
Symbol
Technical parameter
|
Model |
4HV210-06(L) 4HV230-06(L) |
4HV210-08(L) 4HV230-08(L) |
4HV310-08(L) 4HV330-08(L) |
4HV310-10(L) 4HV330-10(L) |
4HV410-15(L) 4HV430-15(L) |
4HV410-20(L) 4HV430-20(L) |
||||
|
Fluid |
Air |
|||||||||
|
Acting |
Manual control direct acting type |
|||||||||
|
Port size |
1/8” |
1/4” |
1/4” |
3/8” |
1/2” |
3/4” |
|
|||
|
Orifice size |
14.0mm2 |
16.0mm2 |
30.0mm2 |
33.0mm2 |
88.0mm2 |
95.0mm2 |
|
|||
|
Lubrication |
No required |
|||||||||
|
Valve type |
4/2 way 4/3 way |
|||||||||
|
Protective class |
IP65 |
|||||||||
|
Pressure range |
0-1.0MPa |
|||||||||
|
Proof pressure |
1.5MPa |
|||||||||
|
Material of body |
Aluminum Alloy |
|||||||||
|
Temperature |
-20℃~60℃ |
|||||||||
|
Operating angle |
90°（4/3 way： 45°） |
|||||||||

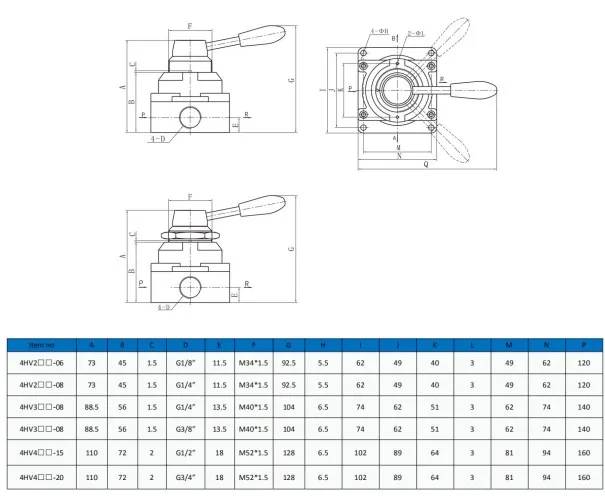

Dimension
Feature
HV /4HV series 4 port Hand Control Pneumatic Switch Rotary Valve
Hand Switching Valve is manually and mechanically actuated valve product.
This valve is manual controlled.
The advantages are: light operation force, good seal, and long working life.
We could produce different Hand Switching Valve with soft rubber seals and hard pottery seals as the seal structure.
