4V Series Mainfolds

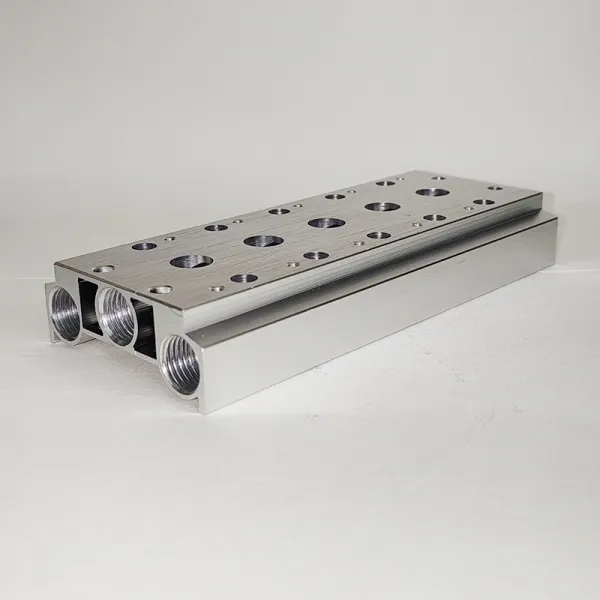

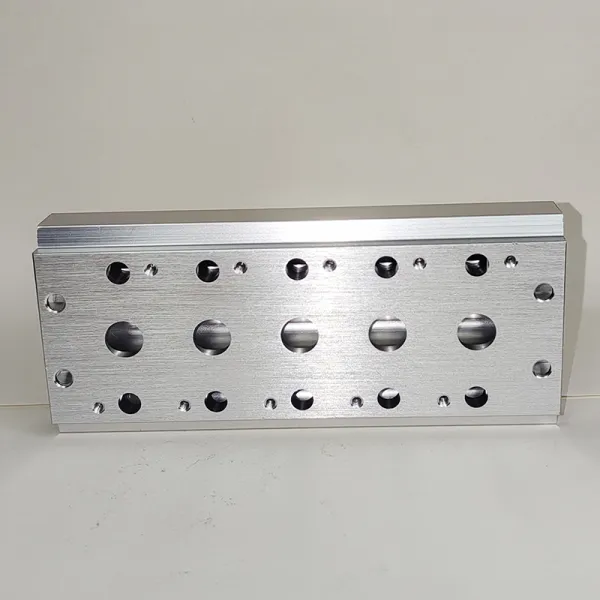

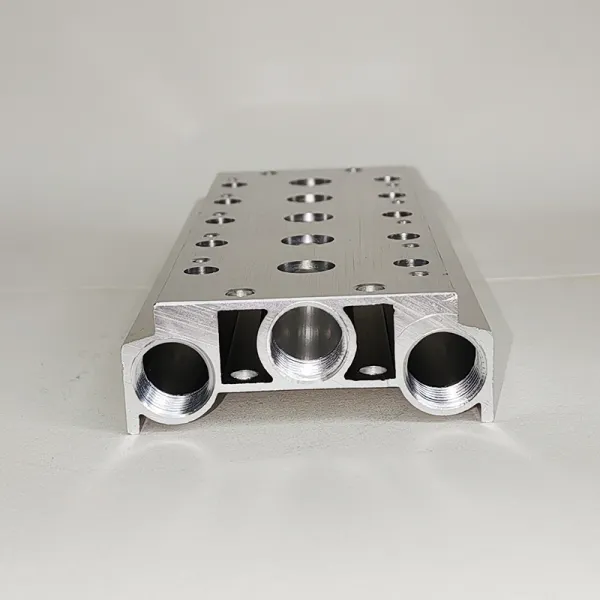

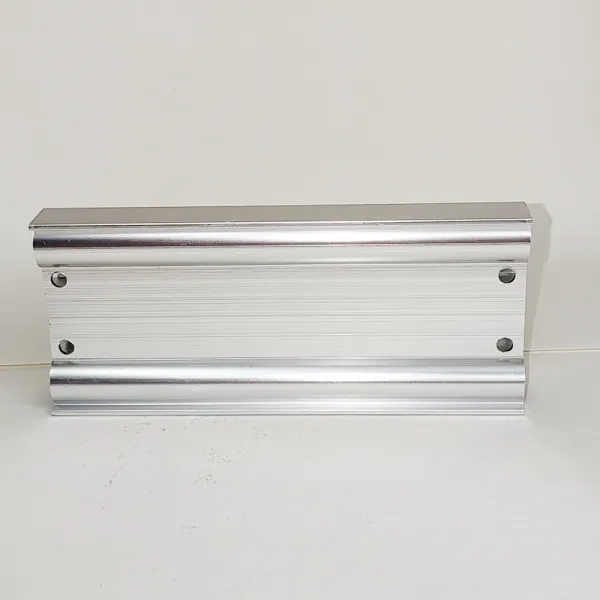

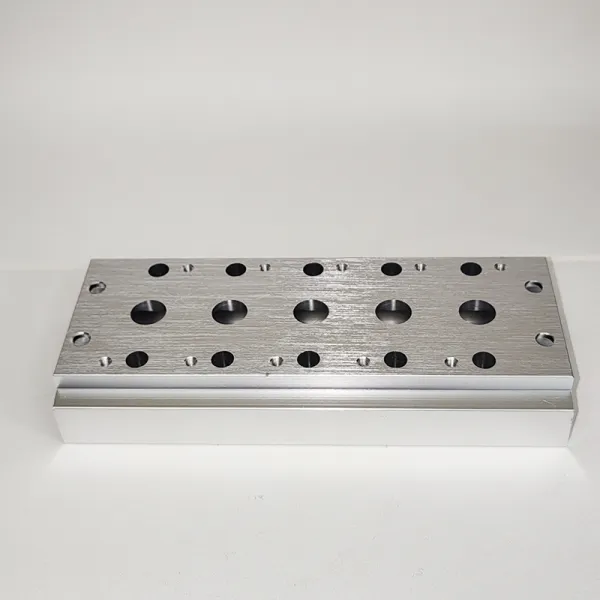

200M Series Manifold (for solenoid valve base connection)

It is made of high-quality aluminum alloy material, featuring excellent corrosion resistance, high toughness and low deformation.

Flexible combination: The number of directional control valves connected can be freely combined or expanded.

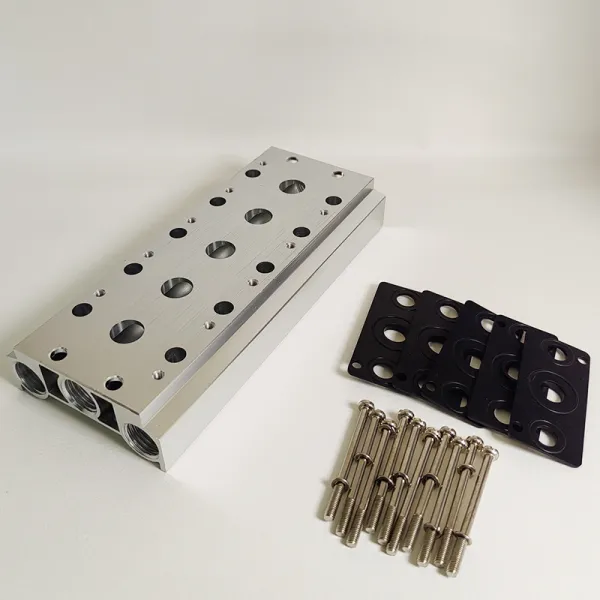

Comprehensive specifications, multiple options available for combination. Can be flexibly expanded according to requirements. Comes with complimentary sealing gaskets and custom screws. Ready to use upon arrival. High cost-effectiveness.
Product Detail

PRODUCT PARAMETER

Pneumatic Solenoid Valve Manifold block for 4V110 4V210 4V310 4V410

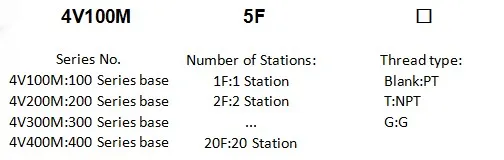

Order code

Technical Parameter

Model

4V100M

4V200M

4V300M

4V400M

Fluid

Air

Temperature

-20℃~70℃

Applicable valve body

4V100 series

4V200 series

4V300 series

4V400 series

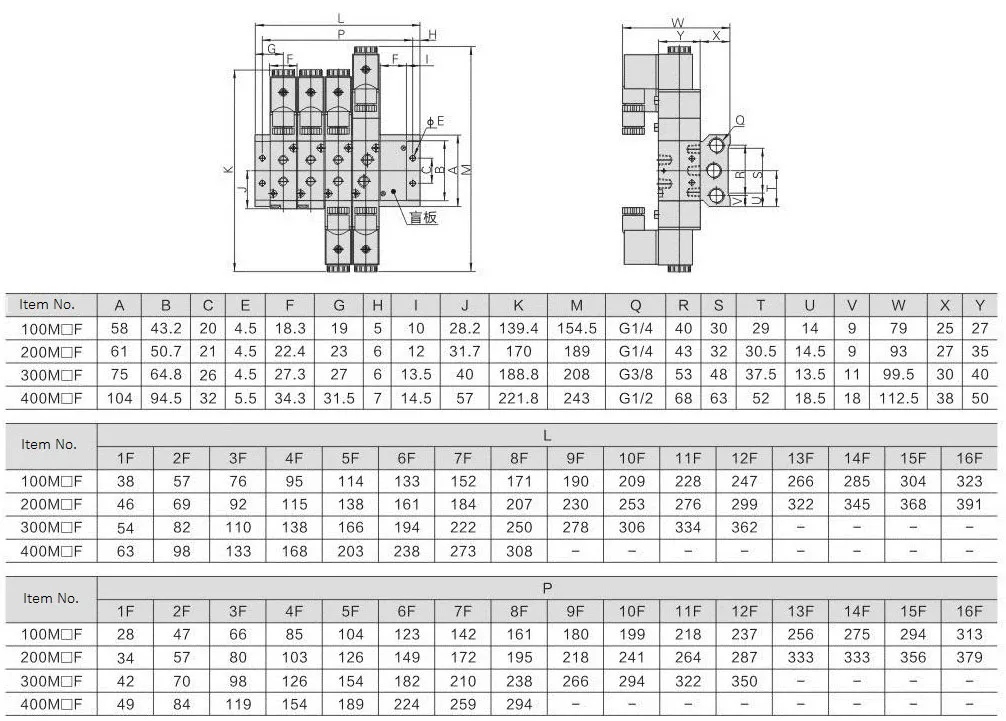

Dimension
