AC20B-02-B

AC series air combination

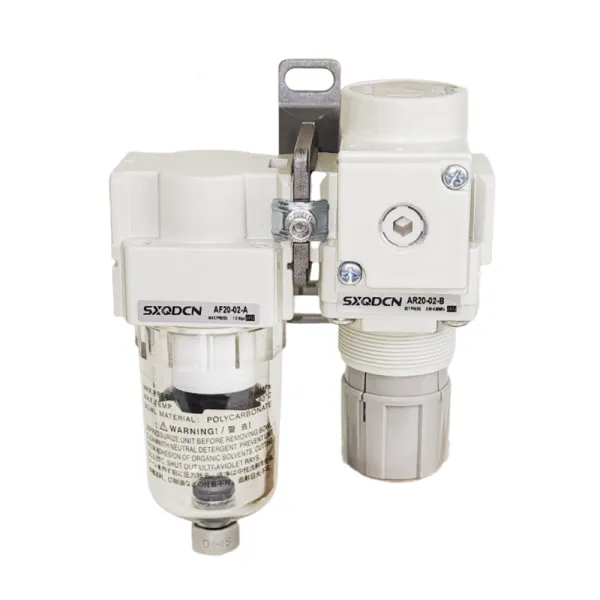

Air Filter+Regulator

Component Function Introduction:

The AF series air filters remove impurities, oil, sewage, etc. from the compressed air, and store them in the filter to achieve the purpose of making the compressed air dry and clean.

The AR Series air relief regulator is used to adjust the pressure of compressed air. After adjusting to the appropriate pressure, the locking device should be locked to prevent accidental operation.

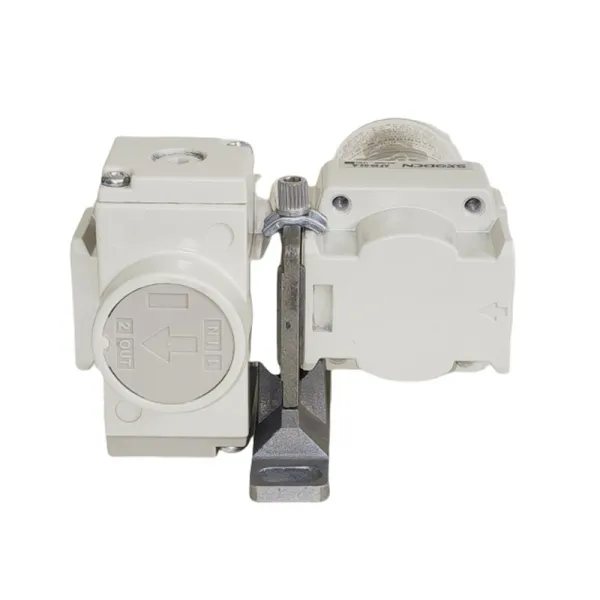

The top of the product is marked with an arrow indicating the intake direction: IN: Intake port, OUT: Exhaust port.

Note: Do not reverse the intake direction during installation, as it will cause excessive air leakage at the handle.
