PE Series T type pneumatic fittingT type 3 way plastic air quick connector No air leakage!•Good seal •Stainless steel spring •Easy to install •High pressure resistanceGood sealing, light and compact structure, stable performance!It can adapt to various working scenarios without leakageHigh strength plastic body high hardness wear and durablePressure of 10kg sealed and leak-proof quick connection!4 times longer insertion life refuse single use
PRODUCT DETAIL
PRODUCT PARAMETER
T type air quick connector plastic PE one touch pneumatic fitting
Order code
Technical parameter
|
Model |
PE-4 |
PE-6 |
PE-8 |
PE-10 |
PE-12 |
PE-14 |
PE-16 |
|
|
Fluid |
Air |
|||||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
|
Temperature |
0℃~60℃ |
|||||||
|
Applicable tube |
PU/Nylon tube |
|||||||
|
Tube outer size |
4mm,6mm ,8mm,10mm,12mm,14mm,16mm |
|||||||

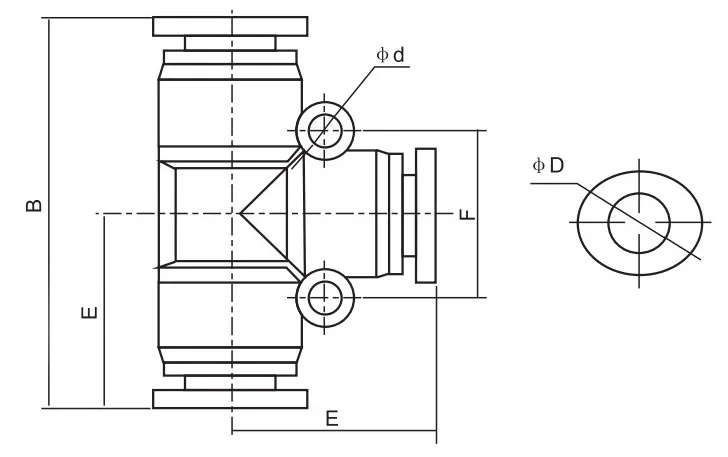

Dimension
|
Metric Type |
φD |
B |
E |
F |
φd |
|
PE-4 |
4 |
36.6 |
18.3 |
/ |
/ |
|
PE-6 |
6 |
41 |
20.5 |
16 |
3.5 |
|
PE-8 |
8 |
46 |
23 |
20 |
4.5 |
|
PE-10 |
10 |
56.6 |
28.3 |
24 |
4.5 |
|
PE-12 |
12 |
58.6 |
29.3 |
27.7 |
5 |
|
PE-14 |
14 |
60.8 |
30.4 |
25.8 |
4 |
|
PE-16 |
16 |
69 |
34.5 |
33 |
4 |
Feature
- PE series T type air quick connector Designed for Polyurethane or Nylon tubing.
- Simple installation pneumatic push in connector.
- After installation, the direction of the tube can be changed freely.
- Elliptical release ring help to connect tube easily by manual, no special tools required.
- Outside (and Inside where applicable) hexagonal wrench tightening.
