PEG8-8-6
PEG series Three-Way Through Reducing Pneumatic FittingThe release ring is designed in an elliptical shape, making it easier and more convenient to remove.Good sealing performance. Made of high-quality materials with high strength and unlikely to be damaged.Can withstand greater and stronger forces without disengaging, easy to install, and has a long lifespan
Product Detail
PRODUCT PARAMETER
PEG series T type hose fittings 3 way plastic tee tube connector
Order code
Technical parameter
|
Model |
PEG6-4 |
PEG8-4 PEG8-6 |
PEG10-6 PEG10-8 |
PEG12-8 PEG12-10 |
|
Fluid |
Air |
|||
|
Max. Pressure |
0-1.0Mpa |
|||
|
Temperature |
0℃~60℃ |
|||
|
Applicable tube |
PU /Nylon tube |
|||
|
Outer diameter of Tube |
4mm/6mm/8mm/10mm/12mm/14mm/16mm |
|||

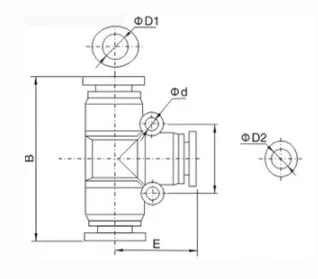

Dimension
|
Metric Type |
ΦD1 |
ΦD2 |
B |
E |
F |
φd |
|
PEG6-4 |
6 |
4 |
40 |
20.5 |
16 |
3.5 |
|
PEG8-4 |
8 |
4 |
44 |
23 |
20 |
4.5 |
|
PEG8-6 |
8 |
6 |
45 |
23 |
20 |
4.5 |
|
PEG10-6 |
10 |
6 |
54 |
28.5 |
24 |
4 |
|
PEG10-8 |
10 |
8 |
55 |
28.5 |
24 |
4 |
|
PEG12-8 |
12 |
8 |
57 |
29.5 |
27 |
5 |
|
PEG12-10 |
12 |
10 |
59 |
29.5 |
27 |
5 |
|
PEG16-12 |
16 |
12 |
69 |
35 |
33 |
4 |
