PW6-4-4
PW series Y Type FittingThe high-strength plastic casing is resistant to corrosion and high pressure, does not oxidize easily, and is not affected by damp, acidic or alkaline environments.Can be used in special environments with high or low temperatures. The surface is smooth, clean and free of any flaws.It can be used normally in a 10KG high-pressure environment. After changing the environment, it can be used again.Plug-and-play installation is convenient. The locking spring allows for up to 7 consecutive uses.
Product Detail
PRODUCT PARAMETER
3 way reducing Y type Tube-to-Tube Adaptor Pneumatic Airtube Pipe Fittings
Order code
Technical parameter
|
Model |
PW6-4 |
PW8-4 PW8-6 |
PW10-6 PW10-8 |
PW12-8 PW12-10 |
|
Fluid |
Air |
|||
|
Max. Pressure |
0-1.0Mpa |
|||
|
Temperature |
0℃~60℃ |
|||
|
Applicable tube |
PU /Nylon tube |
|||
|
Outer diameter of Tube |
4mm/6mm/8mm/10mm/12mm/14mm/16mm |
|||

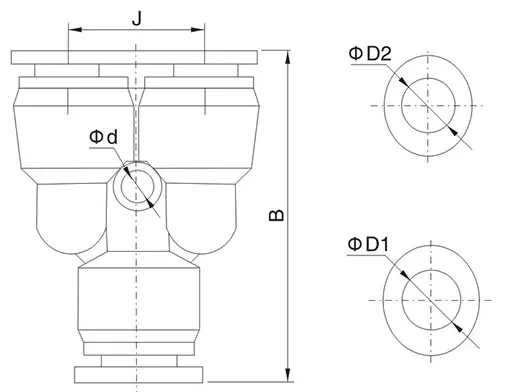

Dimension
|
Inch Type |
Metric Type |
ΦD1 |
ΦD2 |
B |
J |
φd |
|
PW1/4-5/32 |
PW6-4 |
6 |
4 |
38.5 |
13 |
3.5 |
|
PW5/16-5/32 |
PW8-4 |
8 |
4 |
42 |
16 |
4 |
|
PW5/16-1/4 |
PW8-6 |
8 |
6 |
42.5 |
16 |
4 |
|
PW3/8-1/4 |
PW10-6 |
10 |
6 |
47.5 |
19 |
4 |
|
PW3/8-5/16 |
PW10-8 |
10 |
8 |
48 |
19 |
4 |
|
PW1/2-5/16 |
PW12-8 |
12 |
8 |
53 |
21 |
4 |
|
PW1/2-3/8 |
PW12-10 |
12 |
10 |
54 |
21 |
4 |
