PRODUCT PARAMETER
PC series Male Straight One Touch Brass Pneumatic Fitting

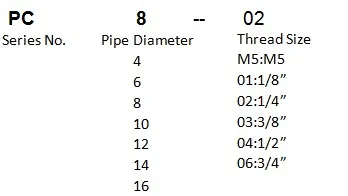

Order code
Technical parameter
|
Model |
PC4-M5 PC4-01 PC4-02 PC4-03 |
PC6-M5 PC6-01 PC6-02 PC6-03 PC6-04 |
PC8-M5 PC8-01 PC8-02 PC8-03 PC8-04 |
PC10-01 PC10-02 PC10-03 PC10-04 |
PC12-01 PC12-02 PC12-03 PC12-04 |
PC14-02 PC14-03 PC14-04 |
PC16-02 PC16-03 PC16-04 PC16-06 |
|
|
Fluid |
Air |
|||||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
|
Temperature |
0℃~60℃ |
|||||||
|
Applicable tube |
PU/Nylon tube |
|||||||
|
Thread size |
1/8”,1/4”,3/8”,1/2” |
|||||||
|
Material of body |
Brass |
|||||||
Dimension
|
Inch Type |
Metric Type |
φD |
R |
A |
B |
H1 |
H2 |
|
PC5/32-M5 |
PC4-M5 |
4 |
M5 |
4.5 |
21.8 |
10 |
2 |
|
PC5/32-01 |
PC4-01 |
4 |
R1/8 |
6.5 |
20.5 |
10 |
3 |
|
PC5/32-02 |
PC4-02 |
4 |
R1/4 |
9 |
19.5 |
14 |
3 |
|
PC1/4-M5 |
PC6-M5 |
6 |
M5 |
4.5 |
22.8 |
12 |
2 |
|
PC1/4-01 |
PC6-01 |
6 |
R1/8 |
6.5 |
22.2 |
12 |
4 |
|
PC1/4-02 |
PC6-02 |
6 |
R1/4 |
9 |
22.2 |
14 |
4 |
|
PC1/4-03 |
PC6-03 |
6 |
R3/8 |
10 |
21.5 |
17 |
4 |
|
PC1/4-04 |
PC6-04 |
6 |
R1/2 |
10 |
23 |
21 |
4 |
|
PC5/16-01 |
PC8-01 |
8 |
R1/8 |
8 |
26.8 |
14 |
4 |
|
PC5/16-02 |
PC8-02 |
8 |
R1/4 |
10 |
25.2 |
14 |
6 |
|
PC5/16-03 |
PC8-03 |
8 |
R3/8 |
10 |
22.2 |
17 |
6 |
|
PC5/16-04 |
PC8-04 |
8 |
R1/2 |
11 |
23.7 |
21 |
6 |
|
PC3/8-01 |
PC10-01 |
10 |
R1/8 |
8 |
30.7 |
17 |
4 |
|
PC3/8-02 |
PC10-02 |
10 |
R1/4 |
10 |
31 |
17 |
6 |
|
PC3/8-03 |
PC10-03 |
10 |
R3/8 |
10 |
29.5 |
17 |
8 |
|
PC3/8-04 |
PC10-04 |
10 |
R1/2 |
11 |
25.2 |
21 |
8 |
|
PC1/2-01 |
PC12-01 |
12 |
R1/8 |
8 |
31.7 |
19 |
4 |
|
PC1/2-02 |
PC12-02 |
12 |
R1/4 |
10 |
33.2 |
19 |
6 |
|
PC1/2-03 |
PC12-03 |
12 |
R3/8 |
10 |
30 |
19 |
8 |
|
PC1/2-04 |
PC12-04 |
12 |
R1/2 |
11 |
30 |
21 |
8 |
|
- |
PC14-03 |
14 |
R3/8 |
11 |
38 |
24 |
6 |
|
- |
PC14-04 |
14 |
R1/2 |
12 |
39 |
24 |
8 |
|
- |
PC16-03 |
16 |
R3/8 |
13 |
39 |
24 |
10 |
|
- |
PC16-04 |
16 |
R1/2 |
15 |
39 |
27 |
12 |
Feature
Easy to connect tube by one touch, and it is applicable for Polyurethane tubing and Nylon tubing
The brass components are nickel plated brass materials
PC series Pneumatic fittings are equipped with a gasket, Stainless steel grab-ring to grip nylon or PU tubing.
