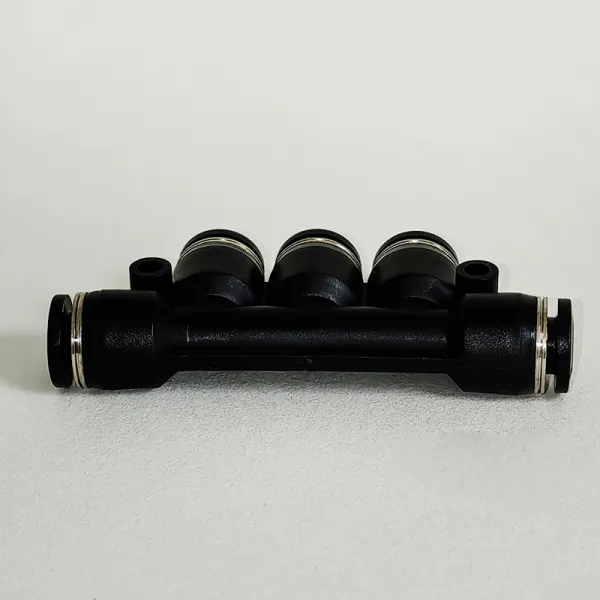

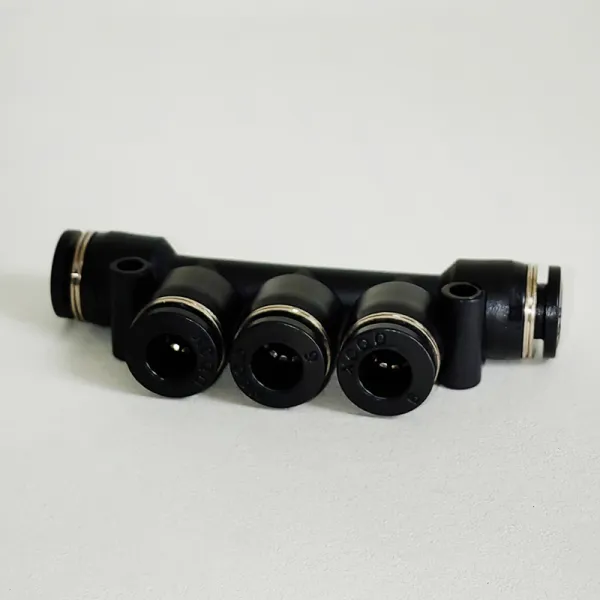

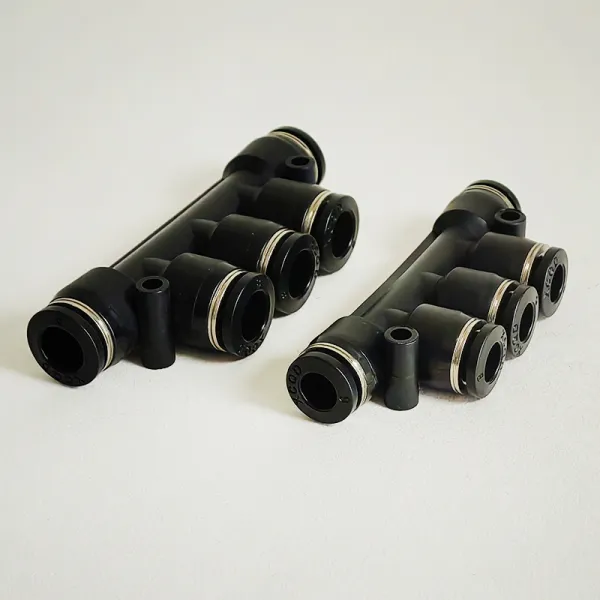

PK-6
PK series Equal reducing fittingSelect high-quality raw materials and use fully automated production lines for processing, resulting in a smooth and flat surface, excellent wear resistance and pressure tolerance, and long-lasting durability.The built-in NBR neoprene rubber sealing ring is more durable and has excellent physical resistance to deformation and toughness.Simple and flexible, with various models, it can meet more pipe installation requirements. Even after installation, the plastic pipe body can rotate 360°
Product Detail
PRODUCT PARAMETER
5 Ports Quick Connector One Pneumatic Air Fittings Plastic pipe Joint
Order code

Technical parameter
|
Model |
PK-4 |
PK-6 |
PK-8 |
PK-10 |
PK-12 |
|
|
Fluid |
Air |
|||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||
|
Temperature |
0℃~60℃ |
|||||
|
Applicable tube |
PU/Nylon tube |
|||||
|
Tube outer size |
4mm,6mm ,8mm,10mm,12mm |
|||||

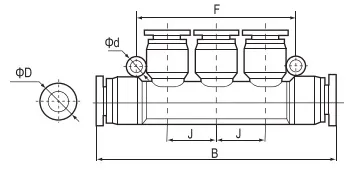

Dimension
|
Metric Type |
φD |
φD1 |
φD2 |
H1 |
φd |
|
PK4 |
4 |
62.4 |
36.8 |
12 |
2.5 |
|
PK6 |
6 |
68.6 |
54.8 |
17.5 |
4 |
|
PK8 |
8 |
80.5 |
54.8 |
17.5 |
4 |
|
PK10 |
10 |
91.4 |
62.5 |
20.4 |
4 |
|
PK12 |
12 |
112 |
71 |
23 |
4 |
