PLF8-01
PRODUCT PARAMETER
PLF series pneumatic push to connect Female Elbow tube connector air line fitting

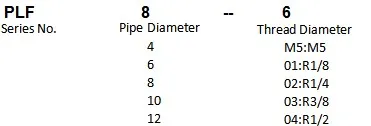

Order code
Technical parameter
|
Model |
PLF4-M5 PLF4-01 PLF4-02 PLF4-03
|
PLF6-M5 PLF6-01 PLF6-02 PLF6-03 PLF6-04 |
PLF8-01 PLF8-02 PLF8-03 PLF8-04 |
PLF10-01 PLF10-02 PLF10-03 PLF10-04 |
PLF12-01 PLF12-02 PLF12-03 PLF12-04 |
|
Fluid |
Air |
||||
|
Max. Pressure |
0-1.0Mpa |
||||
|
Temperature |
0℃~60℃ |
||||
|
Applicable tube |
PU /Nylon tube |
||||
|
Outer diameter of Tube |
4mm/6mm/8mm/10mm/12mm |
||||
Dimension
|
Metric Type |
A |
B |
C |
D |
H |
R |
E |
|
PLF4-M5 |
23 |
M5 |
6 |
6 |
25.5 |
10 |
11 |
|
PLF4-01 |
23 |
R1/8 |
9 |
10.5 |
30 |
12 |
11 |
|
PLF4-02 |
23 |
R1/4 |
10 |
11.5 |
31 |
15 |
11 |
|
PLF4-03 |
23 |
R3/8 |
11 |
13 |
32.5 |
19 |
11 |
|
PLF6-M5 |
27 |
M5 |
6 |
6 |
28.5 |
12 |
13 |
|
PLF6-01 |
27 |
R1/8 |
9 |
10.5 |
33 |
12 |
13 |
|
PLF6-02 |
27 |
R1/4 |
10 |
11.5 |
34 |
15 |
13 |
|
PLF6-03 |
27 |
R3/8 |
11 |
13 |
35.5 |
19 |
13 |
|
PLF6-04 |
27 |
R1/2 |
13 |
15 |
37.5 |
24 |
13 |
|
PLF8-01 |
30.5 |
R1/8 |
9 |
10.5 |
36 |
14 |
15 |
|
PLF8-02 |
30.5 |
R1/4 |
10 |
11.5 |
37 |
15 |
15 |
|
PLF8-03 |
30.5 |
R3/8 |
11 |
13 |
38.5 |
19 |
15 |
|
PLF8-04 |
30.5 |
R1/2 |
13 |
15 |
40.5 |
24 |
15 |
|
PLF10-01 |
34 |
R1/8 |
9 |
10.5 |
39.5 |
17 |
18.5 |
|
PLF10-02 |
34 |
R1/4 |
10 |
11.5 |
40.5 |
17 |
18.5 |
|
PLF10-03 |
34 |
R3/8 |
11 |
13 |
42 |
19 |
18.5 |
|
PLF10-04 |
34 |
R1/2 |
13 |
15 |
44 |
24 |
18.5 |
|
PLF12-01 |
39 |
R1/8 |
9 |
10.5 |
43.5 |
19 |
21 |
|
PLF12-02 |
39 |
R1/4 |
10 |
11.5 |
44.5 |
19 |
21 |
|
PLF12-03 |
39 |
R3/8 |
11 |
13 |
46 |
19 |
21 |
|
PLF12-04 |
39 |
R1/2 |
13 |
15 |
48 |
24 |
21 |
