PL6-M5 PL8-02
PRODUCT PARAMETER
PL series G thread Plastic Pneumatic Push to Connect Fittings

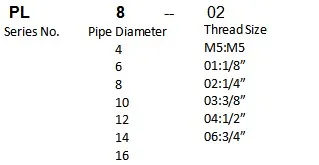

Order code
Technical parameter
|
Model |
PL4-M5 PL4-01 PL4-02 PL4-03 |
PL6-M5 PL6-01 PL6-02 PL6-03 PL6-04 |
PL8-M5 PL8-01 PL8-02 PL8-03 PL8-04 |
PL10-01 PL10-02 PL10-03 PL10-04 |
PL12-01 PL12-02 PL12-03 PL12-04 |
PL14-02 PL14-03 PL14-04 |
PL16-02 PL16-03 PL16-04 PL16-06 |
|
|
Fluid |
Air |
|||||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
|
Temperature |
0℃~60℃ |
|||||||
|
Applicable tube |
PU/Nylon tube |
|||||||
|
Thread size |
1/8”,1/4”,3/8”,1/2” |
|||||||
|
Material of body |
Brass |
|||||||
Dimension
|
Inch Type |
Metric Type |
φD |
R |
A |
B |
H |
E |
φd |
|
PL5/32-M5 |
PL4-M5 |
4 |
M5 |
4.5 |
25 |
10 |
19.7 |
/ |
|
PL5/32-01 |
PL4-01 |
4 |
R1/8 |
7 |
26.5 |
10 |
19.7 |
/ |
|
PL5/32-02 |
PL4-02 |
4 |
R1/4 |
9 |
28 |
14 |
19.7 |
/ |
|
PL1/4-M5 |
PL6-M5 |
6 |
M5 |
4.5 |
27.5 |
12 |
20.8 |
3.5 |
|
PL1/4-01 |
PL6-01 |
6 |
R1/8 |
7 |
27.5 |
12 |
20.8 |
3.5 |
|
PL1/4-02 |
PL6-02 |
6 |
R1/4 |
9 |
29.5 |
14 |
20.8 |
3.5 |
|
PL1/4-03 |
PL6-03 |
6 |
R3/8 |
10 |
30.5 |
17 |
20.8 |
3.5 |
|
PL1/4-04 |
PL6-04 |
6 |
R1/2 |
11 |
32 |
21 |
20.8 |
3.5 |
|
PL5/16-01 |
PL8-01 |
8 |
R1/8 |
8 |
31.7 |
14 |
23.5 |
4.5 |
|
PL5/16-02 |
PL8-02 |
8 |
R1/4 |
10 |
33.8 |
14 |
23.5 |
4.5 |
|
PL5/16-03 |
PL8-03 |
8 |
R3/8 |
10 |
33.8 |
17 |
23.5 |
4.5 |
|
PL5/16-04 |
PL8-04 |
8 |
R1/2 |
11 |
35.5 |
21 |
23.5 |
4.5 |
|
PL3/8-01 |
PL10-01 |
10 |
R1/8 |
8 |
35.5 |
17 |
27.4 |
4.5 |
|
PL3/8-02 |
PL10-02 |
10 |
R1/4 |
10 |
37.5 |
17 |
27.4 |
4.5 |
|
PL3/8-03 |
PL10-03 |
10 |
R3/8 |
10 |
38 |
17 |
27.4 |
4.5 |
|
PL3/8-04 |
PL10-04 |
10 |
R1/2 |
11 |
38.6 |
21 |
27.4 |
4.5 |
|
PL1/2-01 |
PL12-01 |
12 |
R1/8 |
8 |
38 |
19 |
30.3 |
5 |
|
PL1/2-02 |
PL12-02 |
12 |
R1/4 |
10 |
39.5 |
19 |
30.3 |
5 |
|
PL1/2-03 |
PL12-03 |
12 |
R3/8 |
10 |
40.5 |
19 |
30.3 |
5 |
|
PL1/2-04 |
PL12-04 |
12 |
R1/2 |
11 |
42 |
21 |
30.3 |
5 |
|
|
PL14-03 |
14 |
R3/8 |
12 |
42.5 |
24 |
30.3 |
4 |
|
|
PL14-04 |
14 |
R1/2 |
15 |
45 |
24 |
30.3 |
4 |
|
|
PL16-03 |
16 |
R3/8 |
15 |
50 |
24 |
34 |
4 |
|
|
PL16-04 |
16 |
R1/2 |
15 |
50.5 |
27 |
34 |
4 |
Feature
Pure Copper Surface Copper-plated Nickel, Stronger and Longer Life.
Male Elbow Push to Connect Fittings is Sturdy and Durable and Has a Long Service Life.
Easy Installation and Disassembly, Good Sealing Performance.
It Can be Used for The Connection of pipes and The Use of Different Pneumatic Components, and Has a Wide Range of Uses.
You Can Easily Insert or Pull out the Trachea Without Any Tools
The Clip of Connecting Air Pipe is Made of Strong Plastic Material, Which is Not Easy to Fall off After Connection Adopt Sealing Component, Keep Good Sealing, Not Easy to Leak.
Freely Change Pipeline Direction After Installation,Easy to Insert or Pull Trachea Manually Without Tools.
